Good Stability Ntc Thermistor Sensor For Fire Fighting Equipment

Name: Good Stability Ntc Thermistor Sensor For Fire Fighting Equipment
Brand: Jingpu Brand
Price: 0.1 USD

Brand Name : Jingpu Brand

Model Number : MF5A-1

Certification : CE,ROHS,ISO

Place of Origin : Hefei, Anhui, China

MOQ : 500

Price : USD 0.1-5 /PCS

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200 Million per Year

Delivery Time : 2-7days

Packaging Details : Carton packing

Way to install : Inserting

Sensing way : Resistence

Output signal type : Analog Type

Material : Epoxy and Metal

Measuring the dielectric : Temperature

IP code : IP64

Transport package : Carton Packing

Appearance : Black

Warranty : 12~24 Months

After-sale service : Quality Assurance

Customization : Yes

Operating Temperature : /

Resistence Value : Custom

B Value : Custom

Shipping : Shipping, Air, or Express

Wire : PVC/XPLE/FEP/PTFE

Contact Now

Good stability Ntc Thermistor Sensor For Fire-Fighting Equipment

Brief Instruction:

The NTC thermistor is made of NTC element, epoxy resin and bare wire. It’s manufactured from Hefei Jingpu Sensor Technology Co.,Ltd.

Features:

Small epoxy bead

Good stability, fast response time

Operating temperature range: -40℃~125℃

R100℃=3.3kΩ±3%,B0/100=3970k±2%

Application:

Fire-fighting alarmer

Part Number Code:

Good Stability Ntc Thermistor Sensor For Fire Fighting Equipment

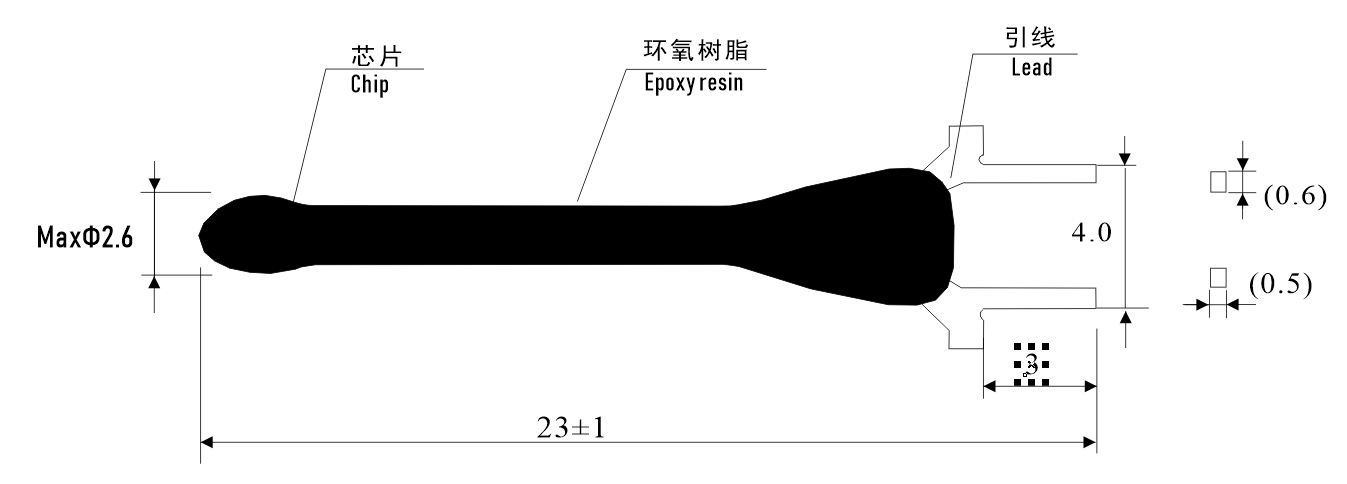

Structure and Dimensions:

Good Stability Ntc Thermistor Sensor For Fire Fighting Equipment

Probe Size	L	L1	D	H	d1
2.6*17.5mm	17.5±1	3±1	Maxφ2.6	2.5	1
2.6*19mm	19±1	3±1
2.6*23mm	23±1	3±1
2.6*26mm	25±1	3±1

Electrical specification:

Product Specification	Rec. at T℃(KΩ)	Beta value	(In air) Pmax(mW)	δ (mW/℃)	thermal time constant τ(sec.)	Operating Temperature Range TL-TH(℃)	Total length L(mm)
A1B212□4200A□□□□L19	R62=20.92	B25/85=4200	Approx.3.5	Approx.0.7	Max.5.0	-40~125	19
A1A104□4132B□□□□L17	100	B25/85=4132					17
A1C104□4132B□□□□L23	100	B25/85=4132					23
A1B332□3970F□□□□L25	R100=3.3	B25/50=3970					26

Buyers requirements
The basic electrical characteristic of a thermistor is that its resistance value changes with temperature, and the temperature of the thermistor itself will change with the surrounding temperature or the self-heating caused by the current passing through the thermistor. In applications such as temperature measurement, control and compensation, the self-consumption of the thermistor is required to be kept to a minimum to avoid self-heating. When the ambient temperature remains the same, the resistance value of the thermistor is a function of the self-consumption power of the thermistor. In this case, the temperature of the thermistor rises to higher than the ambient temperature.
In some operating conditions the high temperature can be 100~200℃ resistance can be reduced to low current conditions under the dry resistance value in some applications can use the thermal contact resistance of its own heating characteristics. In the self-heating state, the thermistor is thermally sensitive to any condition that changes the thermal conductivity of the thermistor. If the heat dissipation speed can be ideally fixed, the thermistor is sensitive to the power input, so the thermistor is suitable for voltage level or power level control.
